AQ-TD RANGE

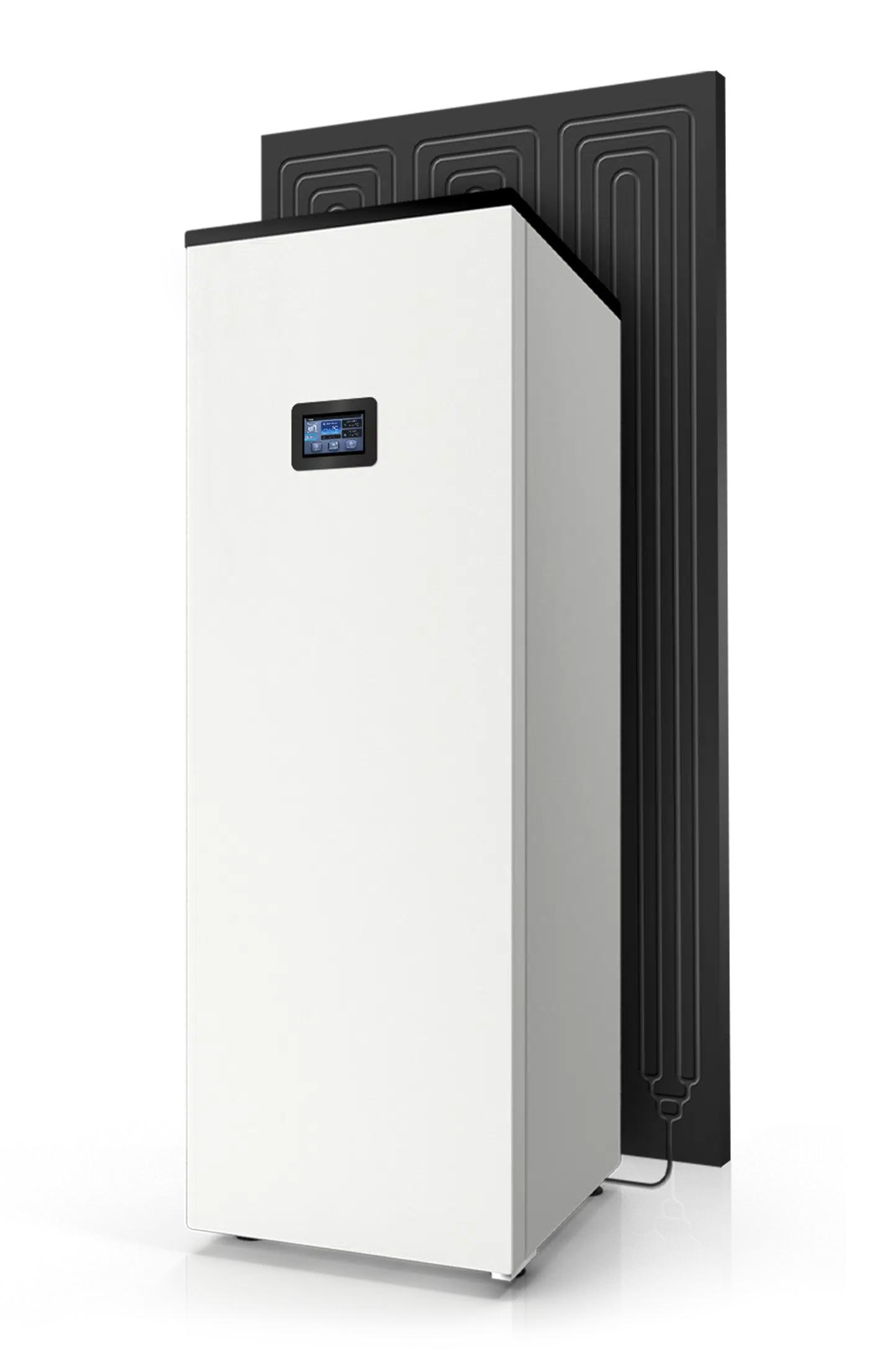

Equipo AQ-TD

AQ-TD / THERMODYNAMICS

What is AQ-TD?

AQ-TD is a system based on the operation of the heat pump with solar gain that is characterised by the incorporation of a thermodynamic panel. This thermodynamic heat pump generates an increase in performance thanks to the use of incident solar radiation, as well as the energy contained in the environment.

Saving up to:
0%

Domestic Hot Water 24 hours a day

Thermodynamic heat pump

Maximum temperature up to 60ºC

Silent equipment thanks to its design

AQ-TD / THERMODYNAMICS

What is AQ-TD?

AQ-TD is a system based on the operation of the heat pump with solar gain that is characterised by the incorporation of a thermodynamic panel, which generates an increase in performance thanks to the use of incident solar radiation, as well as the energy contained in the environment.

Savings up to:
0%
Máxima calidad

MAXIMUM QUALITY

System that improves the energy efficiency of the home, with a tank made of stainless steel, advanced control, thick insulation that reduces noise

Ánodo de titanio

WITH TITANIUM ANODE

It avoids corrosion of the equipment and ensures maximum protection of the tank, extending its useful life for much longer.

100% Adaptable

100% ADAPTABLE

Ideal for installation in newly built homes or renovation of more traditional systems such as electric water heaters or gas boilers.

Más eficiencia

MORE EFFICIENCY

You can make your equipment even more efficient by adding a double coil or photovoltaic connection to the tank.

Thermodynamic panel

Unlike photovoltaic or traditional solar thermal panels, thermodynamic panels do not need to be placed in full sunlight. They absorb heat from direct sunlight, but it can also extract heat from the ambient air during the night.

The aluminium roll-bond panel weighs 6.2 kg, making it a very light panel that can be placed almost anywhere.

Operates without direct solar radiation

Lifetime of the panel is more than 25 years

The panel can be installed horizontally or vertically

Certificado solar keymark

Certified:

Solar Keymark

100% guaranteed Hot Water

AQ-TD is a silent thermodynamic system, with an elegant design that can be fully integrated in kitchens, garages, bathrooms, etc. Ideal for installation at home, but also for housing development areas, hotels, gyms, residences, schools, etc. With a thermodynamic heat pump such as AQ-TD, it is possible to have hot water both day and night, even when the weather conditions are very adverse, such as: rain, cloudiness, wind, snow and even if snow covers the panels. This is because the snow makes the “igloo effect” and keeps the temperature of the panels at 0ºC.

The capacities of our equipment range are from 75 to 500 litres, being also possible the simultaneous connection of several systems to obtain higher capacities.

60ºC

DHW PRODUCTION UP TO 60ºC

Ahorro energético

ENERGY SAVING

INTEGRABLE DESIGN

En cualquier clima

WORKS IN ANY CLIMATE

Esquema AQ-TD

available capacities

from 75 to 500 liters

Capacidades 2WaterHybrid

75 Liters
Installation: Wall or floor

110 Liters
Installation: Wall or floor

130 Liters
Installation: Wall or floor

160 Liters
Installation: Floor

180 Liters
Installation: Floor

200 Liters
Installation: Floor

250 Liters
Installation: Floor

300 Liters
Installation: Floor

500 Liters
Installation: Floor

Technical data

250 litre model

Technical data of the equipment

Extraction cycle

XL

Nominal power DHW (14ºC)*

1543w

Nominal consumption (14ºC)*

516w

SCOP DHW (14ºC)*

2,99

Heating capacity support system

1500w

Refrigerant gas

R134a

* Data expressed for a heating temperature of 55ºC and cold water temperature of 10ºC according to the UNE-EN16147 standard.

* SCOP according to climate zone

Dimensions, weight and connections

Equipment dimensions (AxBxC)*

1760 x 550 x 601 mm

Equipment empty weight

107,5Kg

Panel dimensions (AxBxC)*

1700 x 25 x 800 mm

Panel weight*

6,2Kg

Hydraulic connections**

M 3/4 – 3/4 inches

Thermodynamic panel connections***

1/4 – 3/8 inches

* A = Height / B = Depth / C= Width

** M (Inlet and outlet of the hydraulic connection of the unit in male connection)

*** Inlet/Outlet Sae thread

Edit Content
  • Extraction cycle
  • Nominal power DHW (14ºC) *
  • Nominal consumption (14ºC) *
  • SCOP DHW (14ºC) *
  • Heating capacity support system
  • Refrigerant gas
  • XL
  • 1543w
  • 516w
  • 2,99
  • 1500w
  • R134a

* Data expressed for a heating temperature of 55ºC and cold water temperature of 10ºC according to the UNE-EN16147 standard.

* SCOP according to climate zone

Edit Content
  • Equip. dimensions (AxBxC)*
  • Equip. empty weight
  • Panel dimensions (AxBxC)*
  • Panel weight *
  • Hydraulic connections**
  • Thermodynamic connec.***
  • 1760x550x601mm
  • 107,5Kg
  • 1700x25x800mm
  • 6,2Kg
  • M 3/4inches
  • 1/4 - 3/8 inches

* A = Height / B = Depth / C= Width

** M (Inlet and outlet of the hydraulic connection of the unit in male connection)

*** Inlet/Outlet Sae thread
