AQ BiVent

Exhaust Air Heat Pump

AQ BiVent

AQ BiVent is a high-efficiency exhaust air heat pump designed to offer three functions in a single unit: Domestic Hot Water (DHW), heating, and efficient ventilation. It harnesses the residual heat from the air extracted from inside the home, recovering that energy to produce DHW and heating with minimal energy consumption.

Savings up to:

EASY INSTALLATION

Thanks to its compact format and the integration of various functions in a single equipment, it allows to reduce installation time.

TITANIUM ANODE

Prevents corrosion of the equipment and ensures maximum protection for the tank, extending its useful life for much longer.

TST SMARTCONTROL

Touchscreen control for monitoring, configuring, and optimizing equipment operation. Includes a mobile APP for remote control.

100% ADAPTABLE

Ideal for installation in newly built homes or renovation of more traditional systems such as electric water heaters or gas boilers.

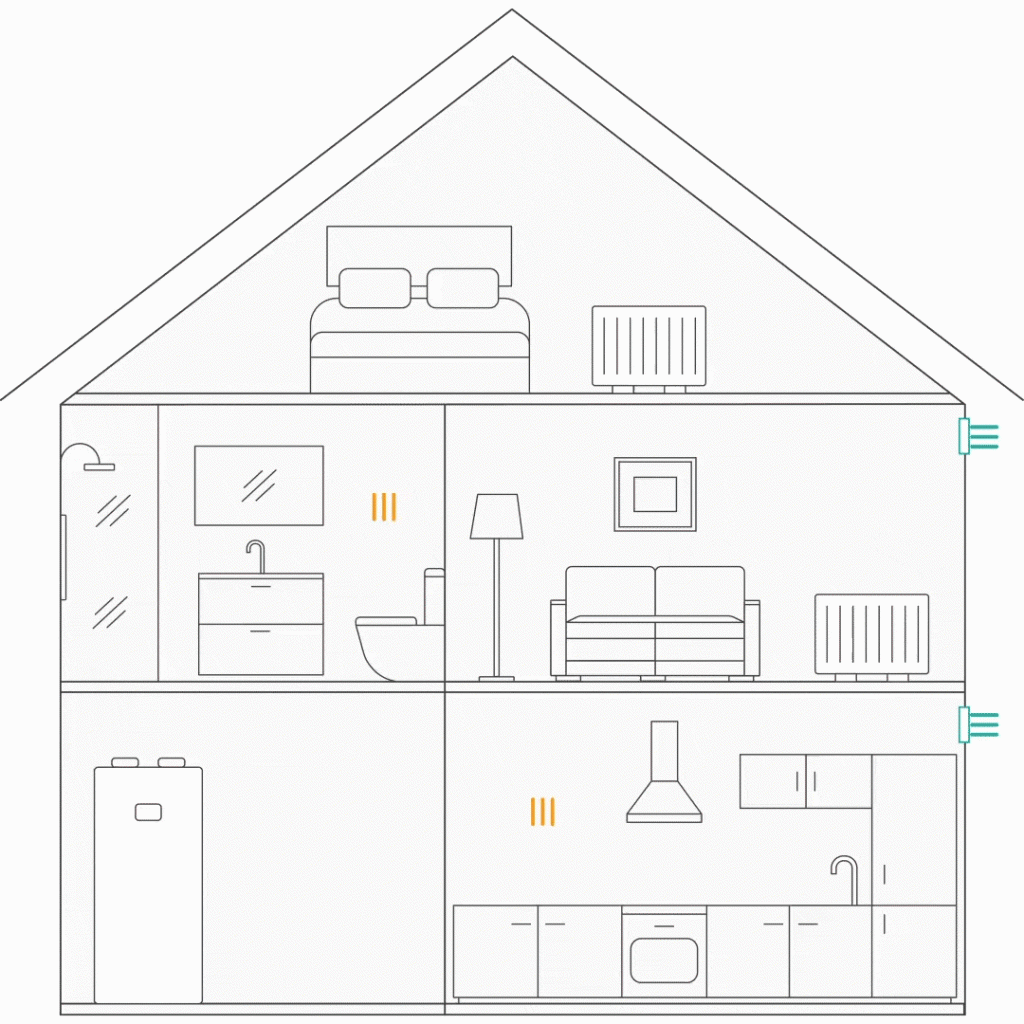

Energy recovery

AQ BiVent extracts energy from the home’s humid areas (bathrooms, kitchen, laundry room, etc.) and thermodynamically recovers the indoor air to generate domestic hot water and heating.

Once the heat is recovered, the cool air is expelled outside. This process allows the indoor air to be renewed, improving room quality.

The ventilation is fully adjustable. The system includes an advanced settings menu from which you can adjust the fan speed to suit the specific needs of each installation.

Energy efficiency

Multiple functions, one equipment:

Efitherma’s AQ BiVent is a comprehensive solution that combines efficiency, comfort, and durability. Made with top-quality materials, it features a stainless steel tank and an impressed current titanium anode, providing superior corrosion protection and significantly extending the equipment’s lifespan.

Thanks to its sound insulation, it guarantees ultra-quiet operation, creating a comfortable environment in any room of the home. It’s sleek design makes it easy to integrate even into small spaces.

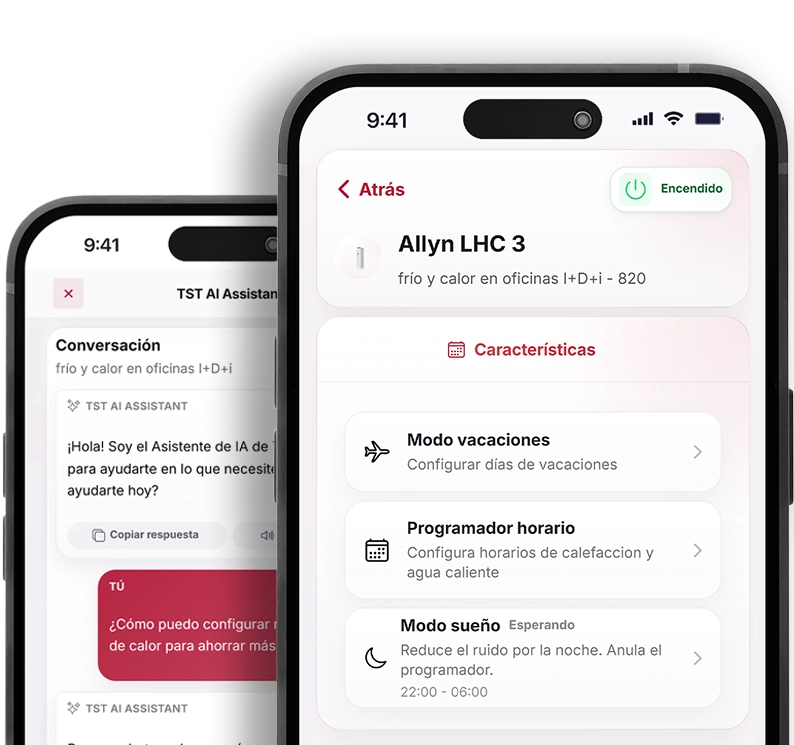

The system incorporates an intelligent controller that allows you to manage and monitor its performance in real time from your mobile phone, facilitating more efficient and personalized use. It also includes integrated humidity control.

Tank capacities

Double buffer tank: DHW and Heating

Technical Data

AQ BiVENT

Technical Data

Max. Heating/DHW Temp. without support

55ºC

Nominal power DHW (14ºC) (1)

1806* / 3612** W

Nominal consumption DHW (14ºC) (1)

474* / 948** W

SCOP DHW (14ºC) (1)

3,81

Thermal power (2)

1500* / 3000** kW

Power absorbed by the compressor (2)

500* / 1000* * kW

COP (2)

3,00

(1) Data expressed for a heating temperature of 55ºC and a cold water temperature of 10ºC according to standard UNE-EN16147

(2) (A7W35) ∆T=5K according to EN 14511 – Air inlet 7ºC, water outlet BC at 35ºC

* Air flow: 220 m³/h

** Air flow: 440 m³/h

Ventilation and connection data

Static pressure available

64* /440** Pa

Equipment airflow range

180 – 360 m³/h

Nominal diameter of inlet/outlet ducts

160 mm

Maximum electrical ventilation power

90 W

Buffer tank inlet/outlet connection

Female (3/4″)

DHW tank inlet/outlet connection

Female (3/4″)

Sound power of the equipment***

46 dBa

* Air flow: 360 m³/h

** Air flow: 180m³/h

*** Sound power measured at 2 meters distance
